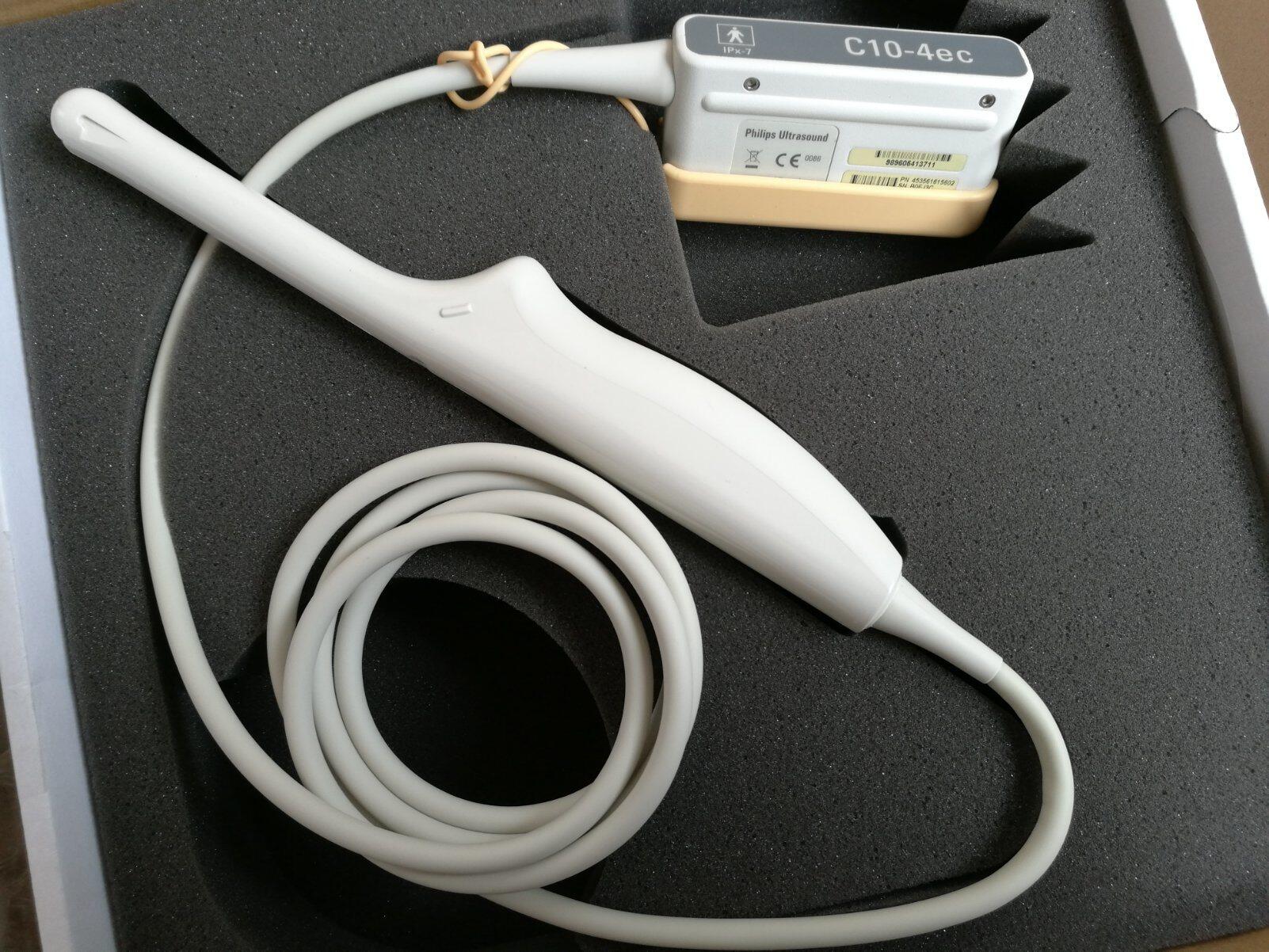

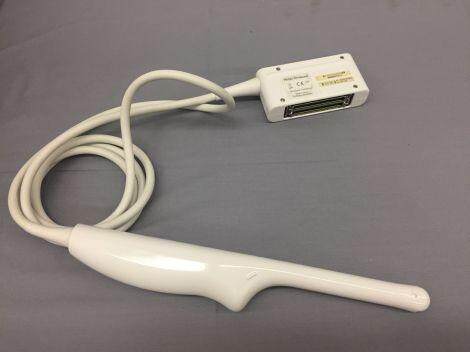

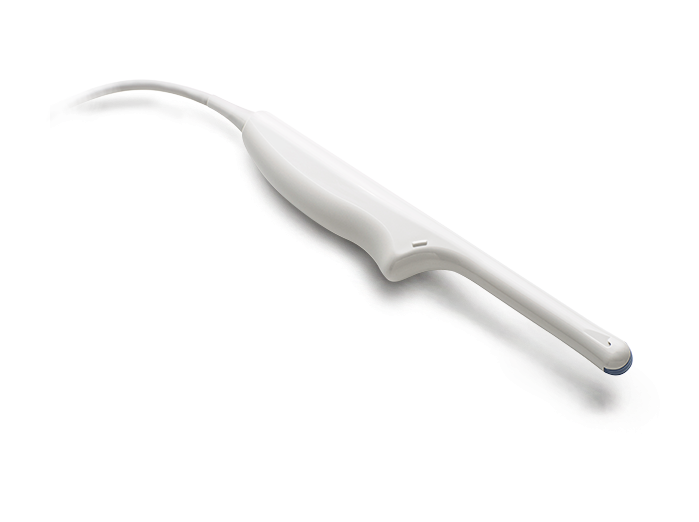

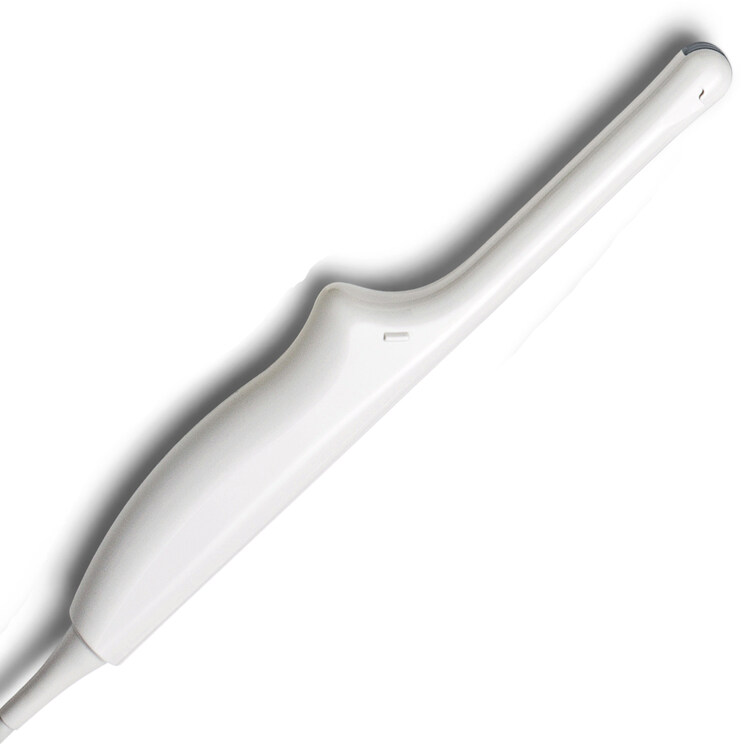

The Philips C10-4ec Intra Cavity transducer has a frequency range of 4.0 MHz - 10.0 MHz and supports the following applications: Obstetrics, Gynaecology. The Philips C10-4ec transducer is compatible with: Philips EPIQ 7; Philips EPIQ 5; Philips Affiniti 70; Philips Affiniti 50 ultrasound systems. For any additional information regarding this probe or any other transducer, please feel free to contact us!
SKU: C10-4ec
Categories:2D Ultrasound Machine Probe and Transducer, Curved Ultrasound Probe and Transducer, General lmaging - Medical lmaging Equipment Probe, MSK & Pain Ultrasound Probe, Philips Ultrasound Probe and Transducer, Ultrasound Parts, Women's Health
Share:
Specifications
|
Technology |
Broadband |
Number of elements |
128 |
|
|
Frequency range |
10 - 4 MHz |
Array Type |
Tightly curved |
|
|
Aperture |
24.3 mm |
Field of view |
147° |
|
|
Modes |
2D, steerable pulsed wave and color Doppler, Color Power Angio (CPA), directional CPA, SonoCT, XRES, and harmonic imaging |
Applications |
Endocavitary applications, including vaginal and rectal |
|
Compatible Ultrasound Systems：
