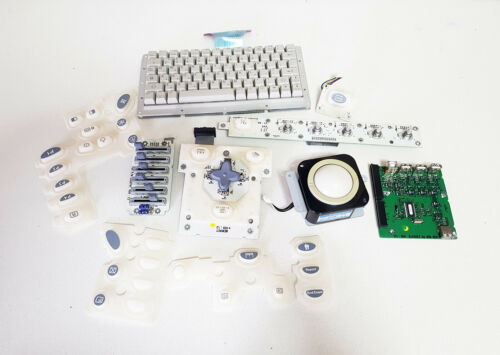

The Philips Ultrasound Parts of HD9. For any additional information regarding parts or any other transducer, please feel free to contact us!
SKU: Philips Ultrasound Parts of HD9
Share:
| PCB/ASSEMBLY NAME | PART NUMBER | |
| Back End Board | 453561378131 (BD-445-BE-0A) | |
| Back End Board | 453561378132 (BD-445-BE-0B) | |
| Beamformer | 453561378211 (BD-445-BF-0A) | |
| CW Board | 453561378241 (BD-445-CW-0A) | |
| Motherboard, Backplane | 453561378381 (BD-445-MOTH-0A) |
|
| Power Supply Assembly, DDM | 453561378331 (ASP-445-PWR-DD M-00) | |
| Power Supply Assembly, DDM | 453561378332 (ASP-445-PWR-DD M-01) | |
| Power Supply Assembly, DDM | 453561403521 (AY-445-PWR-DDM-01) |
|
| Probe Select Assembly | 453561378001 (BD-445-PSA-0A) | |
| Control Panel Assembly | 453561378221 (ASP-445-CP-00 ASP-445-CP-01 ASP-445-CP-02) |
|
| DVD Drive | 453561383771 (A235-042A-00) | |
| DVD Drive | 453561420171 (A235-089A-1-00) | |
| DVD Drive | 453561623071 (A235-089A-2-00) | |
| ECG Drive Assembly | 453561378261 (ASP-445-ECG-00) | |
| ECG Drive Assembly | 453561466911 (AY-445-ECG-01) | |
| Hard Drive, Seagate | 453561378421 (A235-051A-00) | |
| Hard Drive, Seagate | 453561378422 (A235-051A-01) | |
| LCDIF Board | 453561378371 (BD-445-LCDIF-0A) |
|
| LCD Monitor | 453561378361 (ASP-445-LCD/MNT-00) | |
| Motor Board Assembly | 453561378391 (ASP-445-MTR-00) | |
| Motor Board Assembly | 453561378392 (ASP-445-MTR-01) | |
| PC Module Assembly | 453561378401 (AY-445-PC-00 AY-445-PC-0A) |
|
| PC Module Assembly | 453561378402 (AY-445-PC-0B) | |
| PC Module Assembly | 453561378403 (AY-445-PC-0C) | |
| PC Module Assembly | 453561420151 (AY-445-PC-1A) | |
| Power Supply Assembly, ADM | 453561377991 (AY-445-PWR-ADM-00) |
|
| Power Supply Assembly, ADM | 453561377992 (AY-445-PWR-ADM-01) |
|
| Power Supply Assembly, ADM | 453561377993 (AY-445-PWR-ADM-02) |
|
| QWERTY Keyboard Assy (English) | 453561383951 (A260-144A-00) | |
| QWERTY Keyboard Assy (Russian) | 453561384151 (A260-149A-00) | |
| Trackball Assembly | 453561378121 (ASP-445-TRACKB ALL-00) | |
| Monitor Arm | 453561384081 (A229-013A-00) | |
| Monitor Arm | 453561384082 (ASP-445-ARM-00) | |
| v1.00.01.0312 Application | 453561396751 | |
| v1.00.02.0608 Application | 453561398431 | |
| v1.00.03.1024 Application | 453561431571 | |
| v1.01.00.0512 Application | 453561449351 | |
| v1.02.02.0615 Application | 453561601871 | |
| v1.00.01.0312 COTS | 453561396731 | |
| v1.00.02.0608 COTS | 453561398411 | |
| v1.00.03.1024 COTS | 453561431611 | |
| v1.01.00.0512 COTS | 453561449371 | |
| v1.02.02.0615 COTS | 453561601891 | |
| v1.00.01.0312 OS | 453561396711 | |
| v1.00.02.0608 OS | 453561398391 | |
| v1.00.03.1024 OS | 453561431591 | |
| v1.01.00.0512 OS | 453561449391 | |
| v1.02.02.0615 OS | 453561601911 | |
Compatible Ultrasound Systems：
Philips HD9
